MODEL：ATS180G

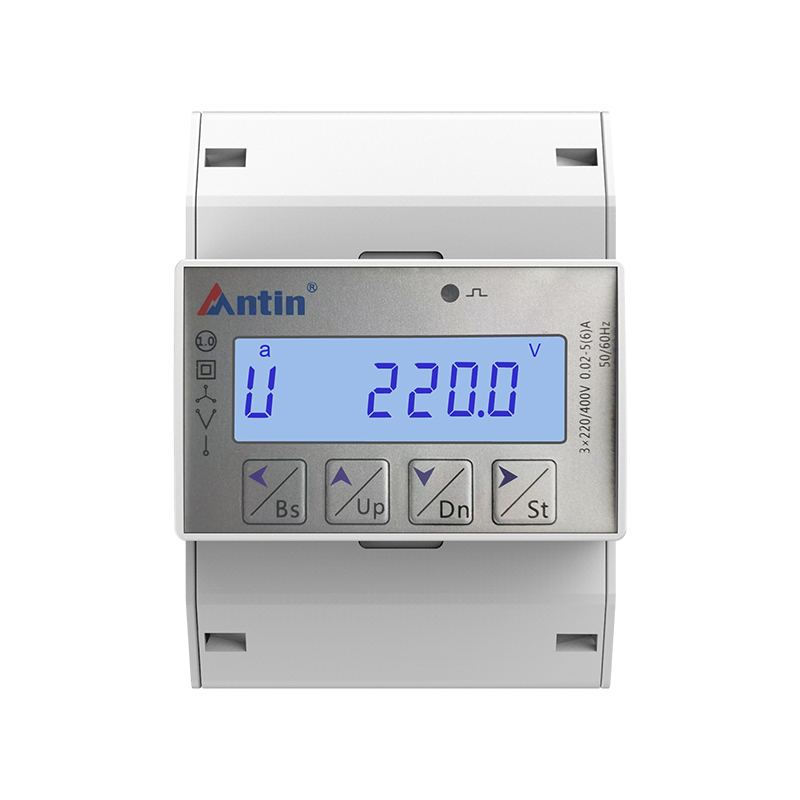

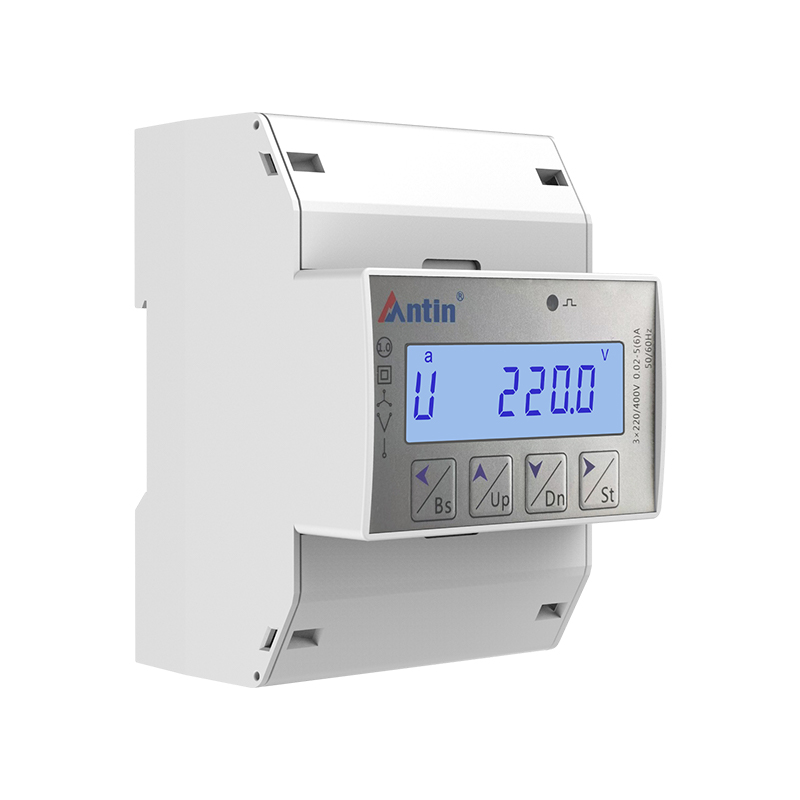

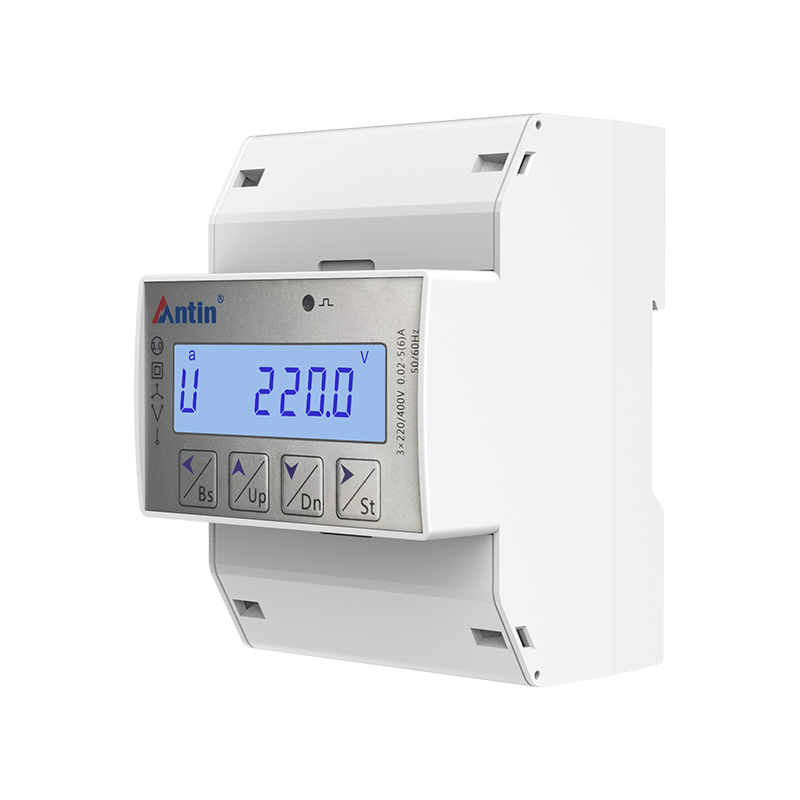

ATS180G Series Smart Energy Safety Monitoring Device

The ATS180G series of smart energy safety monitoring devices are designed for the collection and analysis of power parameters and electric metering, supporting the measurement and analysis of a wide range of power parameters. The RS485 communication interface allows for easy remote data reading, while the LCD display allows for easy local viewing and setting of various measurement parameters.

PREV:ATS180Y Smart Energy Safety Monitoring Device

NEXT:No next article

Model
Feature
Parameters
Dimension

Hangzhou Antin Power Technology Co., Ltd.

Hangzhou Antin Power Technology Co., Ltd is located in Hangzhou, China, known as the "Silicon Valley of Paradise". Establishment in 2013.Antin Power is one of the leading ATS180G Series Smart Energy Safety Monitoring Device Company and ATS180G Series Smart Energy Safety Monitoring Device Suppliers of electricity meters and energy measurement solutions to help worldwide customers visualize all energy usage and improve productivity and energy efficiency.

Over the years, Antin Power has developed a wide range of products including din rail energy meters, multi-function energy meters, prepaid energy meters, panel meters, etc., which could be widely used in the applications like energy management and monitoring systems, sub-billing systems, electrical SCADA system etc.

0
Founded In
0
Certificate
0year
Quality Promise
0+
Cooperate Client

Company Honor

News

Response time of automatic temperature and humidity controllers: the art of bala...
19 Dec, 2024
Automatic temperature and humidity controllers play a vital role in modern life and industrial produ...
READ MORE
Electricity submeter: Strengthening energy consumption monitoring and promoting ...
12 Dec, 2024
Strengthening energy consumption monitoring: accurate grasp and efficient managementOne of the core ...
READ MORE
Digital three phase power meter: data bridge and energy guardian in smart grid
05 Dec, 2024
Data collection and storage: accurate insight into energy flowOne of the core advantages of digital ...
READ MORE
3 phase din rail meter: a powerful tool for power monitoring and energy efficien...
28 Nov, 2024
1. Core functions of 3 phase din rail meter3 phase din rail meter is designed to measure key paramet...
READ MORE

Get a quote to learn about our new products

Sales Tel
（+86 ）18069799350
（+86 ）18106587828
E-mail
[email protected]
[email protected]
FAX
+86-571-87381800
Address
4th Floor, Building C, Qinglan Science and Technology Park, Xihu District, Hangzhou City, Zhejiang Province, China

What's your name?
What's your email address?*
What's your telephone？
Your company name?
Your message*
SUBMIT

Download
Our Brochure

Click
Back To Top

Working Power
Operating range	AC/DC85~265V
Power consumption	≤5W
AC input
Input voltage Rated	AC 100V、220V、400V
Overload	1.2times continuous,2times( 10s)
Power consumption	<0.4VA/phase
Impedance Input current	≥200kΩ
Primary current	1-9999A
Secondary input	1A or 5A
Short-time overcurrent	20 times Max. current for 0.5 s
Power consumption	<0.2VAPhase
Impedance	≥0.1Ω
Input-output
Switch inputs	Dry contact input, opto-isolated
Switch outputs	Relay output; any power alarm can be set
Comm Port
RS485	Modbus RTU
Accuracy
Voltage/Current	0.5%
Frequency	0.2%
Power / Power Factor	1%
Active power	Class0.5S
Reactive power	Class2
Operation Environment
Operating temperature	-25℃~55℃
Storage temperature	-40℃~70℃
Operating humidity	≤90%RH，non-condensing, no corrosive air
Storage humidity	≤95%RH，non-condensing, no corrosive air
Altitude	≤2000m
Electromagnetic compatibility Performance
Electrostatic discharge	Class Ⅳ（GB/T 17626.2 IEC 61000-4-2）
RF EMF radiation immunity	Class Ⅲ（GB/T 17626.3 IEC 61000-4-3）
Fast Transient Burst/Burst	Class Ⅳ(GB/T 17626.4 IEC 61000-4-4）
Surge Test	Class IV(GB/T 17626.5 IEC 61000-4-5)
Conducted Susceptibility Test	Class Ⅲ（GB/T 17626.6 IEC 61000-4-6）
Power Frequency Magnetic Field Susceptibility Test	Class Ⅳ(GB/T 17626.8 IEC 61000-4-8)
Oscillating wave immunity	Class Ⅲ(GB/T 17626.12 IEC 61000-4-12)
Electromagnetic emission limits	Accordant(GB/T 14598.16 IEC 60255-25)
Electrical insulation properties
Dielectric strength	2kV Working frequency voltage, 1 min （GB/T 13729）
Insulation resistance	≥100MΩ （GB/T 13729）
Shock voltage	5kV，12/50μs （GB/T 13729）
