MODEL：ATB-600

ATB-600 Series Microcomputer Protection Devices

The ATB-600 series integrated protection, measurement, and control device is a very practical protection device designed for 35kV and below ring network cabinets, 550 cabinets and 450 cabinets, which can not only provide voltage and current protection for the corresponding power equipment but also achieve measurement, control and communication functions. In addition, the common functions are set as options to meet the needs of the site, thus providing suitable products for the customer, avoiding waste of resources, and reducing costs. This series of protection, measurement, and control devices are suitable for the protection of incoming and outgoing lines, busbars, distribution transformers, and small capacity motors in power distribution systems.

PREV:ATB-700 Series Microcomputer Protection Devices

NEXT:ATB-800 Series Microcomputer Protection Devices

Model
Feature
Parameters
Dimension

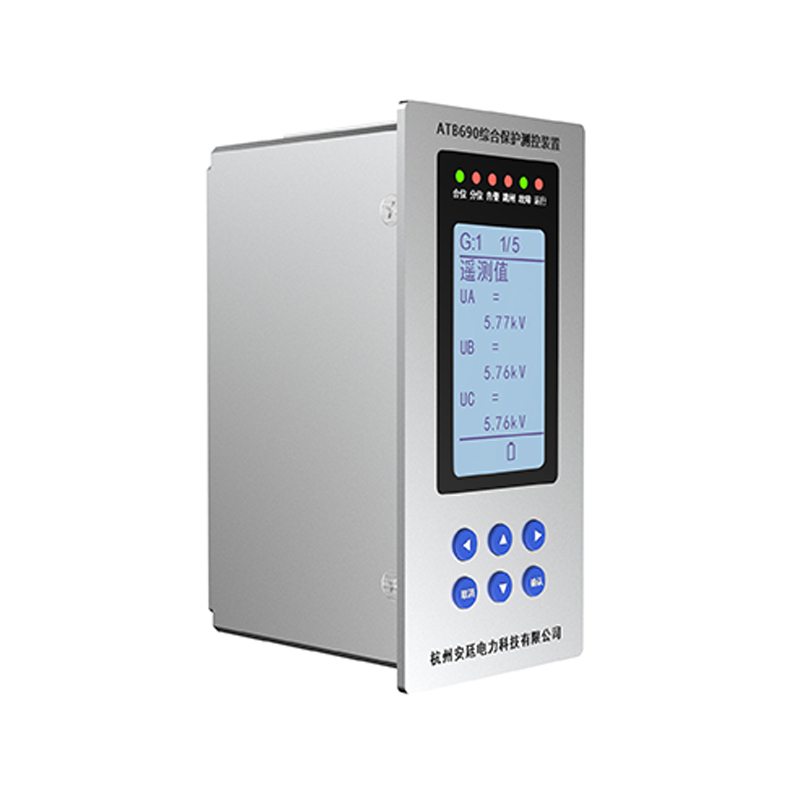

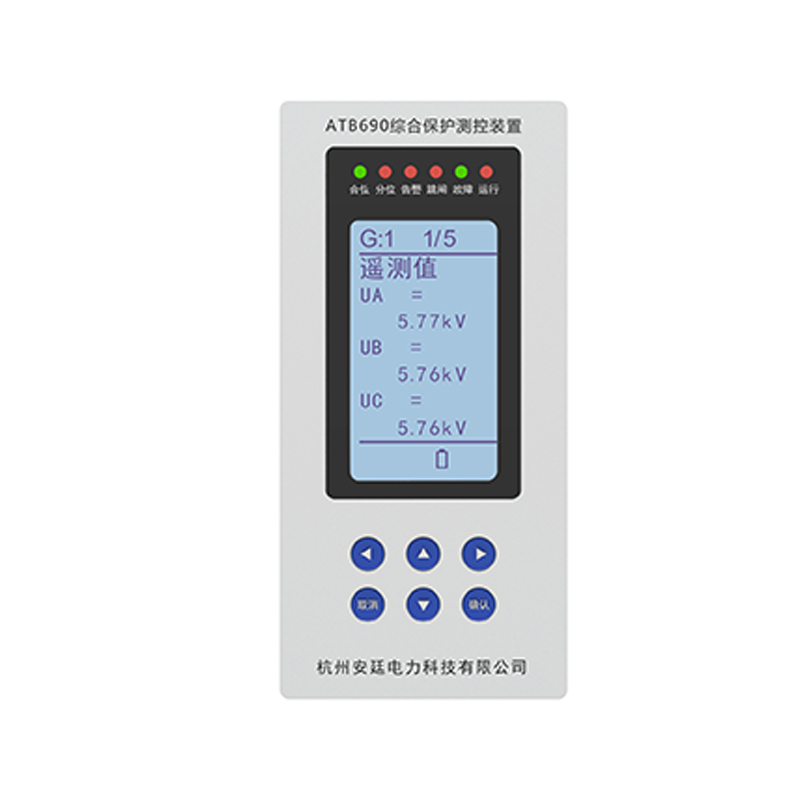

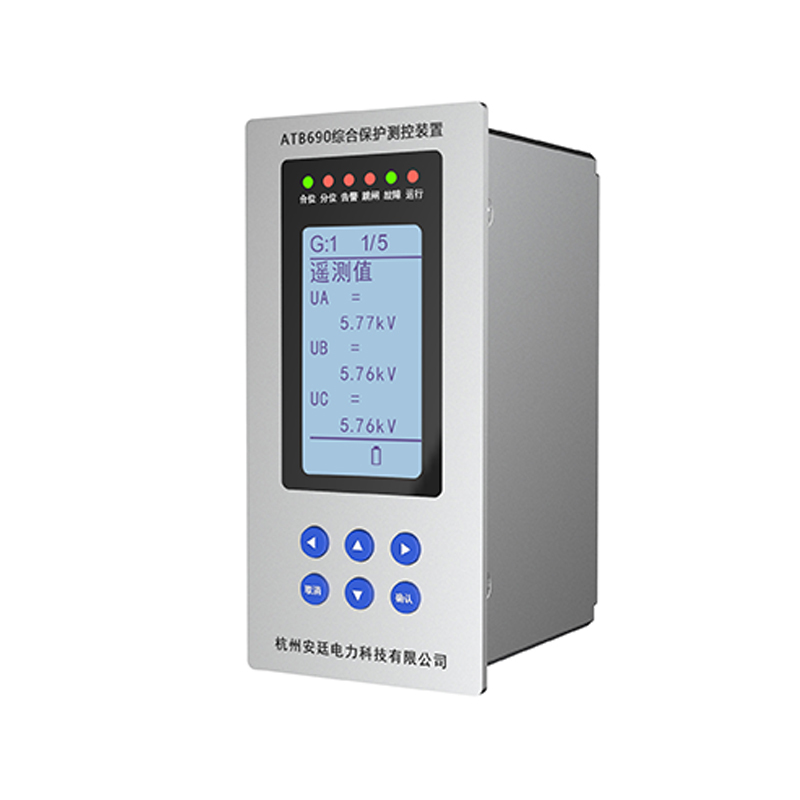

●ATB-690 general-purpose protection and control device

●ATB-677 Anti-islanding protection device

Rated Parameters
Operating power supply	AC/DC220V，DC110V，DC48V
AC rated voltage Ue	100V or V
AC rated current Ie	5A,1A
Frequency	50Hz
Action value error
Average error of action values for delayed periods	≤±35ms or 2.5％
AC current circuit	＜1VA/Phase（IN=5A）；＜0.5VA/Phase（IN=1A）
Event recording resolution	≤ 1ms
Measurement accuracy
Current, voltage	Class 0.5
Power, kWh	Class 1.0
Frequency	±0.02Hz
Telemetry
Input method	Passive contact
Telemetry resolution	≤ 1ms
Thermal performance (overload capacity)
AC voltage circuits	continuous operation under 1.2 times rated voltage; operate for 10s under 1.4 times rated voltage
AC current circuits	continuous operation under 2 times rated current; 10s operation under 10 times rated current, 1s operation under 20 times rated current
Power consumption
DC power circuits	≤5W
AC voltage circuit	≤0.5VA/Phase
Output contact capacity
Output method	Passive contact
Turn-on current	8A@250VAC，8A@30VDC
Open contact voltage tolerance	1000V
voltage tolerance between coil and contact	4000V
Operation time	8ms(Max.)
Mechanical durability	With load>100,000times without load> 10，000，000times
Working environment
Operating temperature	-25℃~55℃
Storage temperature	-40℃~70℃
Operating humidity	≤90%RH，non-condensing, no corrosive air
Storage humidity	≤95%RH，non-condensing, no corrosive air
Altitude	≤2000m
Electromagnetic compatibility Performance
Electrostatic discharge	Class Ⅳ（GB/T 17626.2 IEC 61000-4-2）
RF Field Strength Susceptibility	Class Ⅲ（GB/T 17626.3 IEC 61000-4-3）
Electrical Fast Transient /Burst Test	Class Ⅳ(GB/T 17626.4 IEC 61000-4-4）
Surge Test	Class IV(GB/T 17626.5 IEC 61000-4-5)
Conducted Susceptibility Test	Class Ⅲ（GB/T 17626.6 IEC 61000-4-6）
Power Frequency Magnetic Field Susceptibility Test	Class Ⅳ(GB/T 17626.8 IEC 61000-4-8)
Oscillating wave immunity	Class Ⅲ(GB/T 17626.12 IEC 61000-4-12)
Electromagnetic emission limits	Accordant(GB/T 14598.16 IEC 60255-25)
Electrical insulation properties
Dielectric strength	2kV Working frequency voltage, 1 min （GB/T 13729）
Insulation resistance	≥100MΩ （GB/T 13729）
Shock voltage	5kV，12/50μs （GB/T 13729）
Mechanical properties
Vibration Response/Durability	Class Ⅰ （GB/T 11287）
Shock Response/Durability	Class Ⅰ （GB/T 14537）
Crash Response	Class Ⅰ （GB/T 14537）
Overall Dimension
H×W×D	156.2mm×75mm×85.5mm
Cut-out Dimension	148mm×69mm
