MODEL：ATZ1000

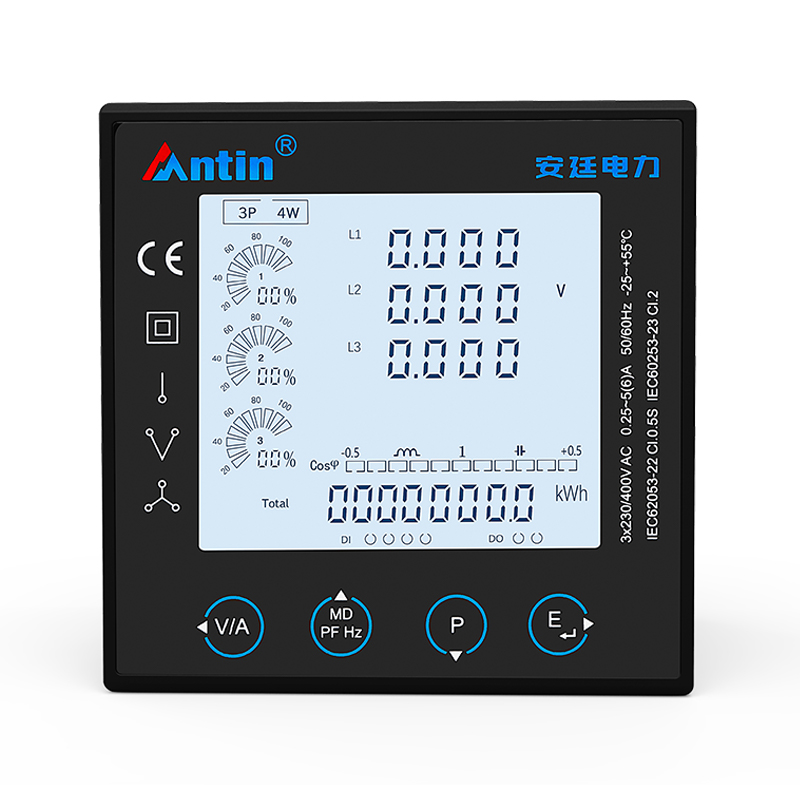

ATZ1000 Series Multi-Function Power Meter

The ATZ1000 series multi-function power meters are featured in a ccura te measurement and display of various power parameters: voltage, current, power, frequency, active power, reactive power, forward power, reverse power, power factor, total harmonic distortion, sub-harmonics, maximum demand, etc. in single-phase two-wire, three-phase three-wire, and three-phase four-wire grids. It is suitable for real-time power monitoring systems and is characterized by its multi-functionality, versatility, high stability and long life. The meter is suitable for all kinds of high and low-voltage grids with a maximum current of 9999 A and a maximum voltage of 500000 V. It has an RS485 communication interface for remote communication and is ideal for power and energy monitoring.

PREV:No previous article

NEXT:ATZ3000 Series Multi-function Power Meter

Model
Feature
Parameters
Dimension

●ATZ1000 Multi-function Power Meter

Measurement

●phase voltage, line voltage, current, active power, reactive power, apparent power, frequency, power factor

●Calculation of bi-directional active and reactive energy

●Voltage and current harmonic distortion

●Fractional harmonics

●maximum demand

Best Value Records

●Recording parameters including: voltage, current, power, power factor, etc.

Input and output functions

●Switching inputs (DI)

●Switching outputs (DO)

●Switching output associated with electrical reference overrun

protection

●Electrical pulse output

Communication functions

●RS485：MODBUS-RTU protocol

●ethernet： MODBUS-TCP protocol

SOE event logging

●30 events can be recorded

●Cycle sampling not less than 128 points, support telematics,remote control, telemetry

●Compatible with single-phase and three-phase full grid system type access

●Sub-phase and total full power parameter measurement

●Fractional harmonic measurement can reach up to 63 times

●Support RS-485 and Ethernet port communication

●Communication rate up to 38400bps

●Five-touch key operation, friendly interface settings

●High-resolution large screen, wide view area with black characters on gray background

●Sub-phase and total power and current demand statistics

●Demand calculation mode, update period, slip time can be set

●Real-time display of the load ratio sector chart
●Power factor histogram indication

●Bidirectional metering, sub-phase active and reactive power metering

●Unbalanced (NEUTRAL WIRE) current and voltage

●Phase sequence judgment, phase angle display

●Manual and automatic page flip, backlight delay can be set

●1A/5A transformer type access, variable ratio can be set

●Intelligent setting of forward and reverse wiring of sub-phase transformer

●DI input anti-shake time can be set according to actual needs

●DO output delay time can be set according to actual needs

●SOE equipment full event record

●Removable battery for easy maintenance

●Dn housing, installation size 92*92mm, extrusion type installation, no snap fastening needed

●Plug and unplug connection

Working Power
Operating range	AC/DC85~265V
Power consumption	≤5W
AC input
Input voltage Rated	AC 100V、220V、400V
Overload	1.2times continuous,2times( 10s)
Power consumption	<0.4VA/phase
Impedance Input current	≥200kΩ
Primary current	1-9999A
Secondary input	1A or 5A
Short-time overcurrent	20 times Max. current for 0.5 s
Power consumption	<0.2VAPhase
Impedance	≥0.1Ω
Input-output
Switch inputs	Dry contact input, opto-isolated
Switch outputs	Relay output; any power alarm can be set
Comm Port
RS4S5	Modbus RTU
Accuracy
Voltage/Current	0.5%
Frequency	0.2%
Power / Power Factor	1%
Active power	Class0.5S
Reactive power	Class2
Operation Environment
Operating temperature	-25℃~55℃
Storage temperature	-40℃~70℃
Operating humidity	≤90%RH，non-condensing, no corrosive air
Storage humidity	≤95%RH，non-condensing, no corrosive air
Altitude	≤2000m
Electromagnetic compatibility Performance
Electrostatic discharge	Class Ⅳ（GB/T 17626.2 IEC 61000-4-2）
RF EMF radiation immunity	Class Ⅲ（GB/T 17626.3 IEC 61000-4-3）
Fast Transient Burst/Burst	Class Ⅳ(GB/T 17626.4 IEC 61000-4-4）
Surge Test	Class IV(GB/T 17626.5 IEC 61000-4-5)
Conducted Susceptibility Test	Class Ⅲ（GB/T 17626.6 IEC 61000-4-6）
Power Frequency Magnetic Field Susceptibility Test	Class Ⅳ(GB/T 17626.8 IEC 61000-4-8)
Oscillating wave immunity	Class Ⅲ(GB/T 17626.12 IEC 61000-4-12)
Electromagnetic emission limits	Accordant(GB/T 14598.16 IEC 60255-25)
Electrical insulation properties
Dielectric strength	2kV Working frequency voltage, 1 min （GB/T 13729）
Insulation resistance	≥100MΩ （GB/T 13729）
Shock voltage	5kV，12/50μs （GB/T 13729）
Mechanical properties
Vibration Response/Durability	Class Ⅰ （GB/T 11287）
Shock Response/Durability	Class Ⅰ （GB/T 14537
Crash Response	Class Ⅰ （GB/T 14537）
Overall Dimension
H×W×D	72mm×72mm×55mm
Cut-out Dimension	67mm×67mm
